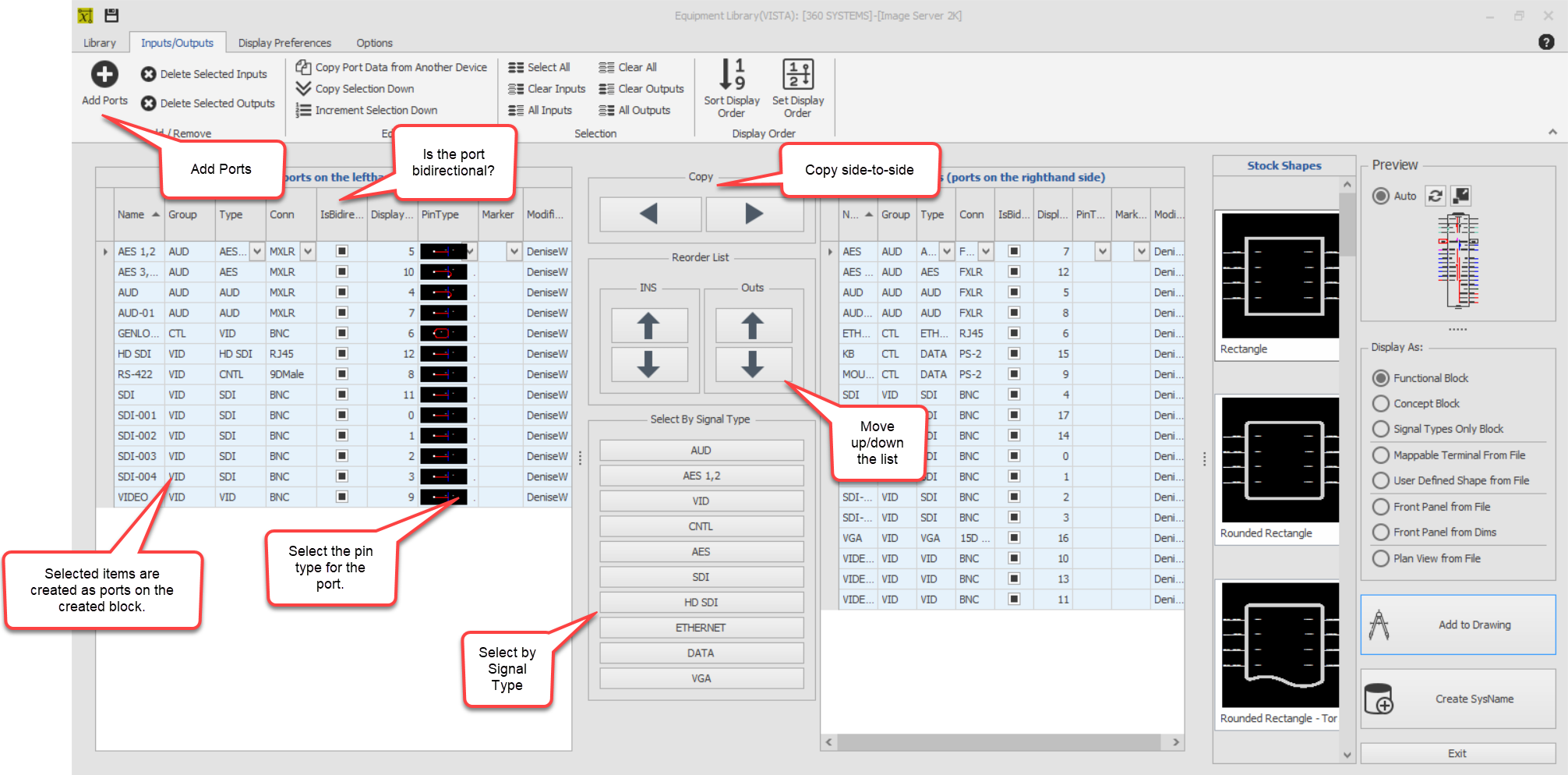

The Inputs/Outputs tab allows for:
•The ability to change pin type
•Users to group ports
•Users to mark ports to allow you to better present or clarify a design
•Users to create bidirectional signal types. If you are not sure which ide to place a prot, you can add a bidirectional port and it will display on inputs and outputs, but you can only use it as one or the other.
