1.Open the Equipment Library.

2.Find an equipment definition to which we will add ports.

3.Select the I/O tab.

4.Click [Add Ports] button.

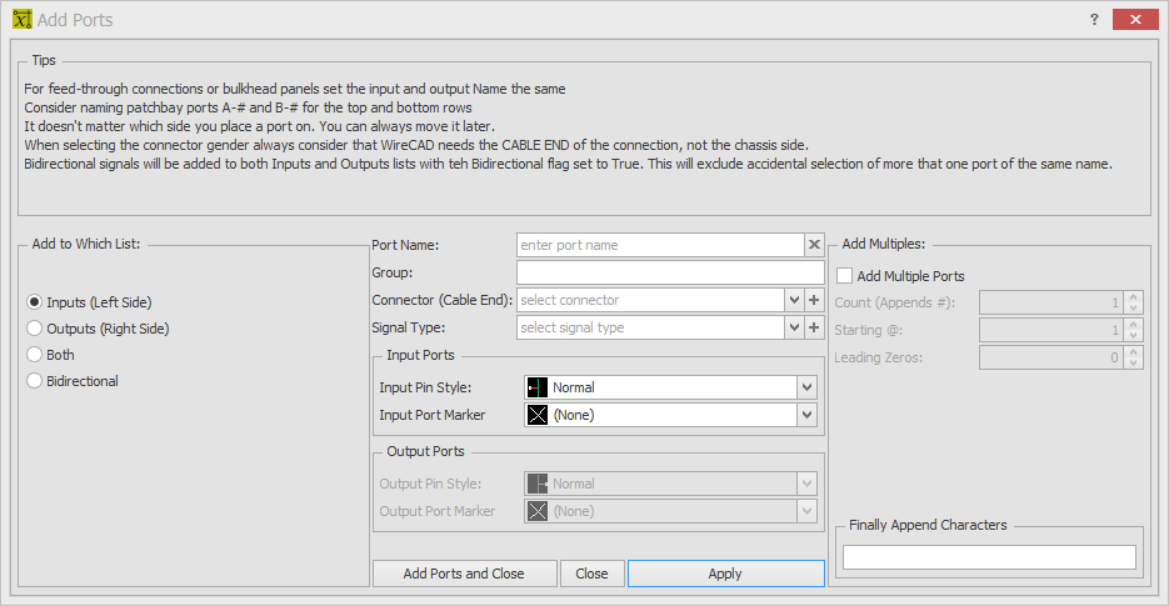

5.Enter a port name, connector, signal type.

6.Select Inputs, Outputs table or Both.

7.Click [Add Ports and Close] or [Apply] (if you want to leave the form open).

 Your port(s) will be added to the selected list(s):

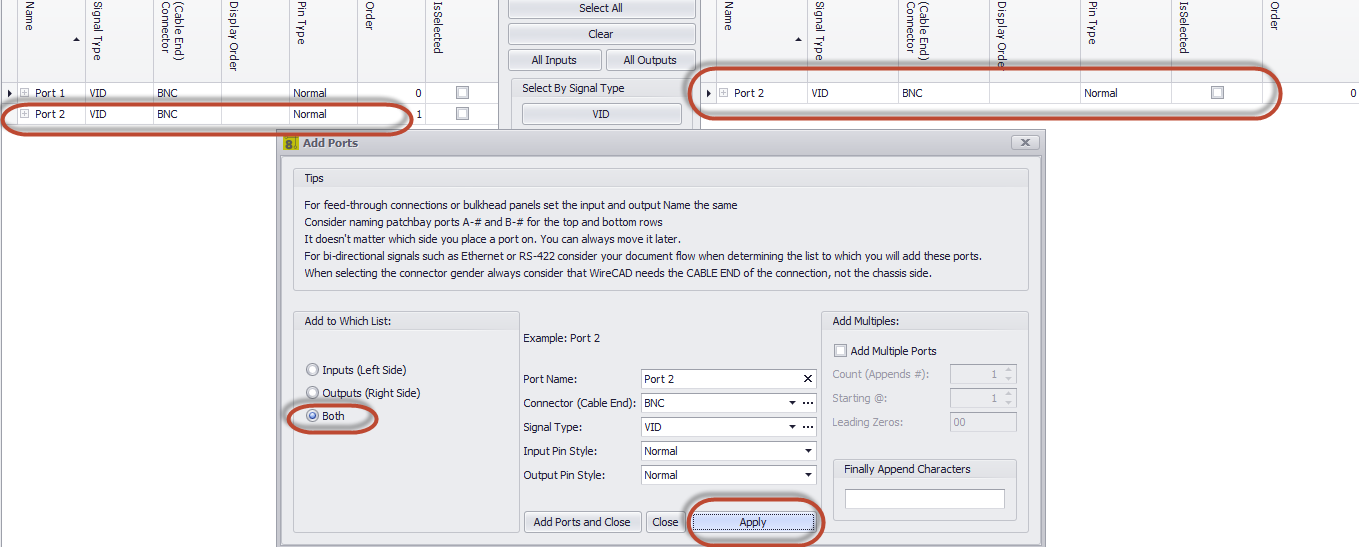

8.Add a single port to the Inputs and Outputs list at the same time.

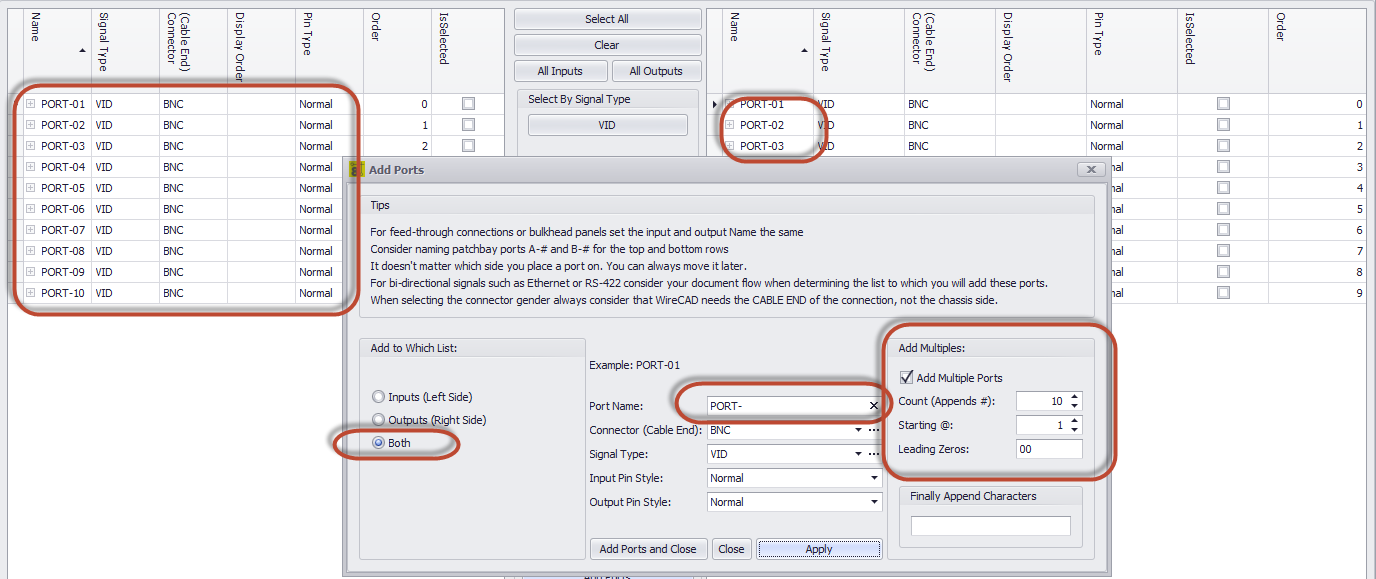

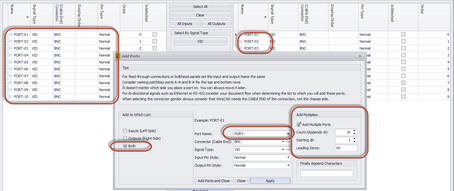

9.Add 10 ports to each grid appending a port number to each record.

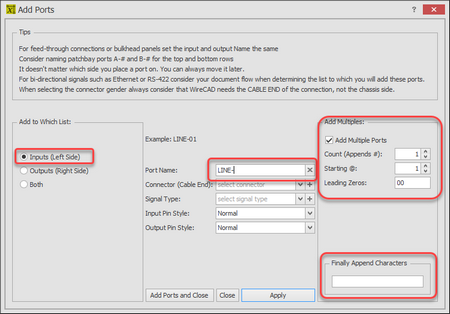

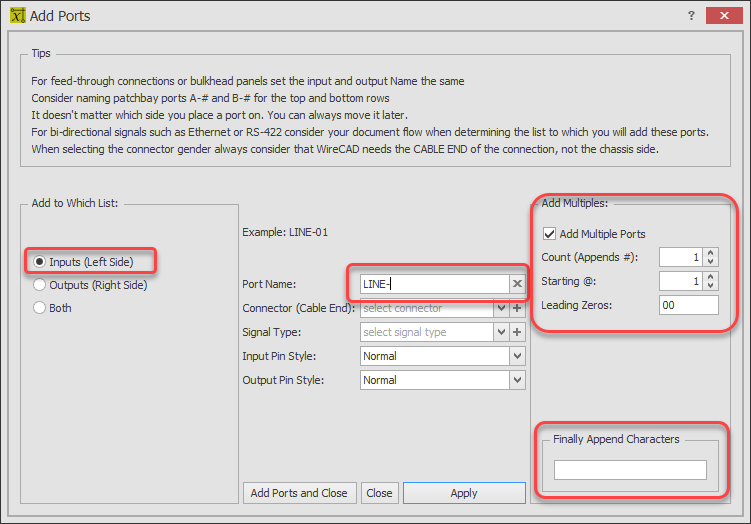

10.Now let's create the 8 left line inputs of a stereo mixer. We will use the Finally Append Characters field to append the characters -LEFT after the number is created and appended to the Port Name.
