How To: Add Equipment to the Library

<< Click to Display Table of Contents >>

Navigation:  WireCAD PRO Manual > Getting Started > Creating a New Equipment Definition >

How To: Add Equipment to the Library

 Previous pageReturn to chapter overviewNext page

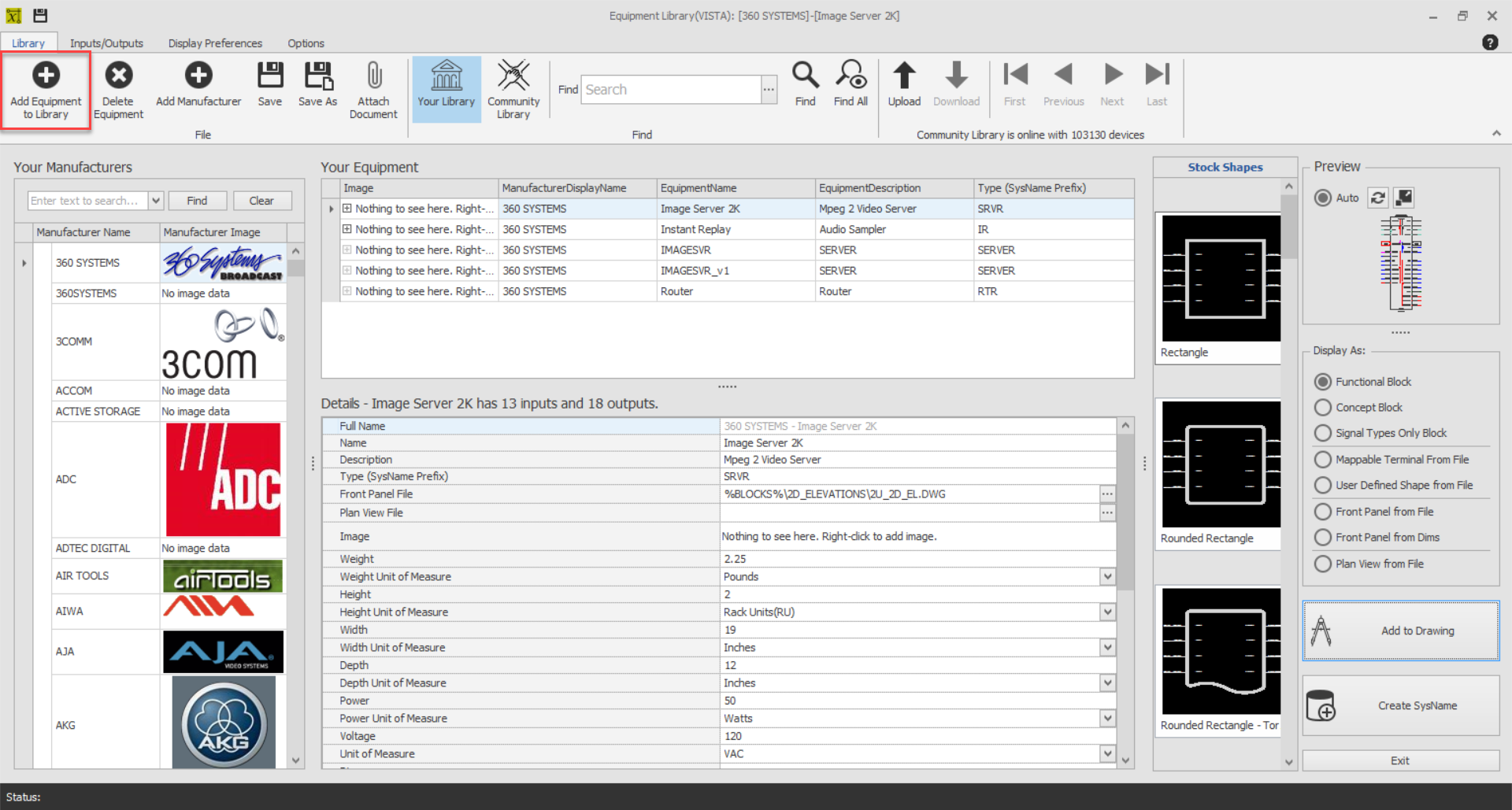

1.Click Database>Equipment Library

2.Click [Add Equipment to Library]



dlg_new_el_add_equipment_to_library

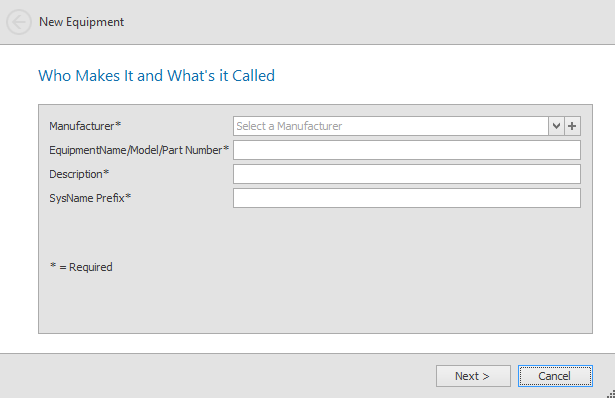

3.Select or add a Manufacturer.



dlg_add_equipment_who_makes_it

4.Enter model/pn/name, description, etc.

5.Click [Next >]

lightbulb

There is always some confusion about the SysName Prefix (Equipment Type) field. Consider the following:

We have two types of video server -model A and model B - that use similar wiring. We may consider using the SysName Prefix - SRVR. Anytime we create an instance of one of these we they will be SRVR-01, SRVR-02, and SRVR-0n. Now consider that model A is not available to use and that we have to install model b instead. No problem. Because they "harness" is named SRVR-n we can interchange Make and Model as needed.

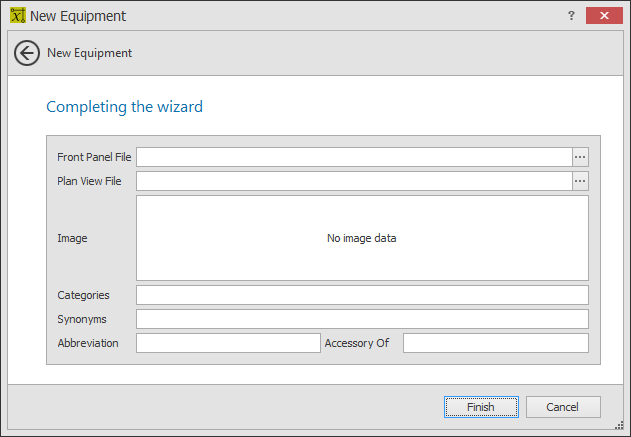

6.This page is optional, but we recommend filling in the Front Panel File field.

7.

  dlg_add_equipment_front_panel_file





lightbulb

Filling in the Front Panel File field will make the Rack Builder tool work. Leave it empty and you may be frustrated later.



8.Click [Next >] to add the new definition.

The wizard completes and you are taken to the Equipment Library to edit the newly added equipment definition.
