Menu: Database>Equipment Library
Menu: Advanced Tools>Equipment Library
Default command line shortcut: LE
The WireCAD Equipment Library is where you will spend a fair amount of time as you get define equipment that you will use in your designs. This is also where we come to create CAD blocks in our drawings. There are many settings here that let you customize appearance. This chapter is the basics.

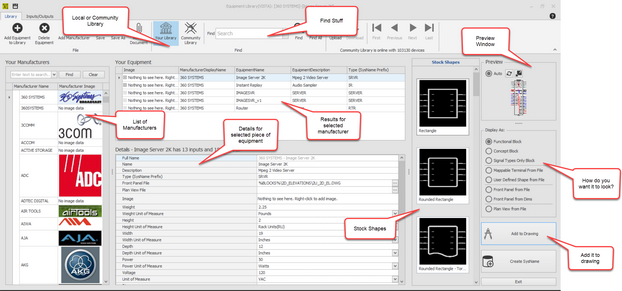

Main Library Dialogue
This is where you can find all of the information about a selected device with the exception of input and output information.
Find equipment definitions in the global database or the Community Server. To use a piece of equipment from the Community Library, download it to your local database. Map your signal types from the ones the device creator used.
Preview the block before adding to drawing.
