Knowledge BaseSubject: | Equipment block color changes during "Edit block in place" operation. |
---|---|
Status |
Resolved |
Product | WireCAD v7 |
Product Level | PRO |
Database Type | SQL Server |
Build Number (last 4 digits of version) | 1264 |
Upload | Download! |
Message

Customer

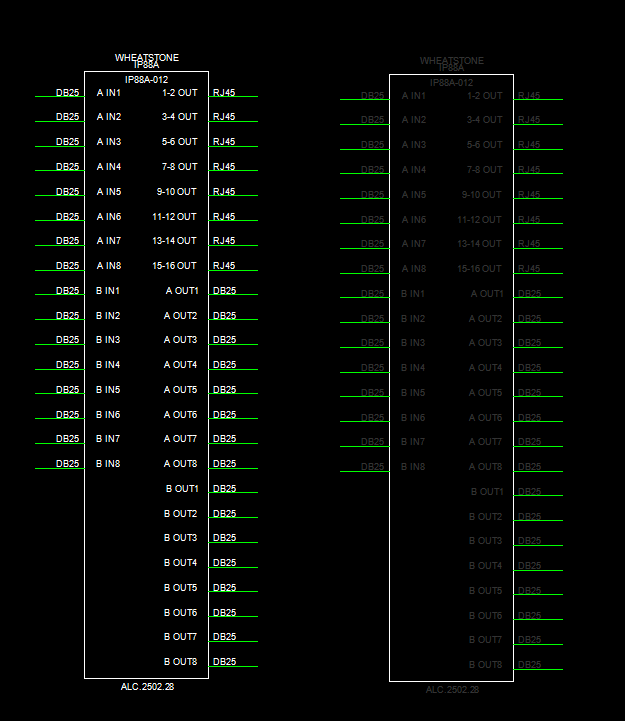

I have on particular drawing in which, when I edit any piece of equipment, the outline and text of the block change from white to dark grey. I've attached a screenshot showing before and after from one particular block, but this happens to every block in the drawing.
Same thing if I insert a new block- it goes down as dark grey.
No other drawing in the project (which I've found, anyway) seems to be having this problem.
Same thing if I insert a new block- it goes down as dark grey.
No other drawing in the project (which I've found, anyway) seems to be having this problem.
10-March-2016 (05:33 PM)

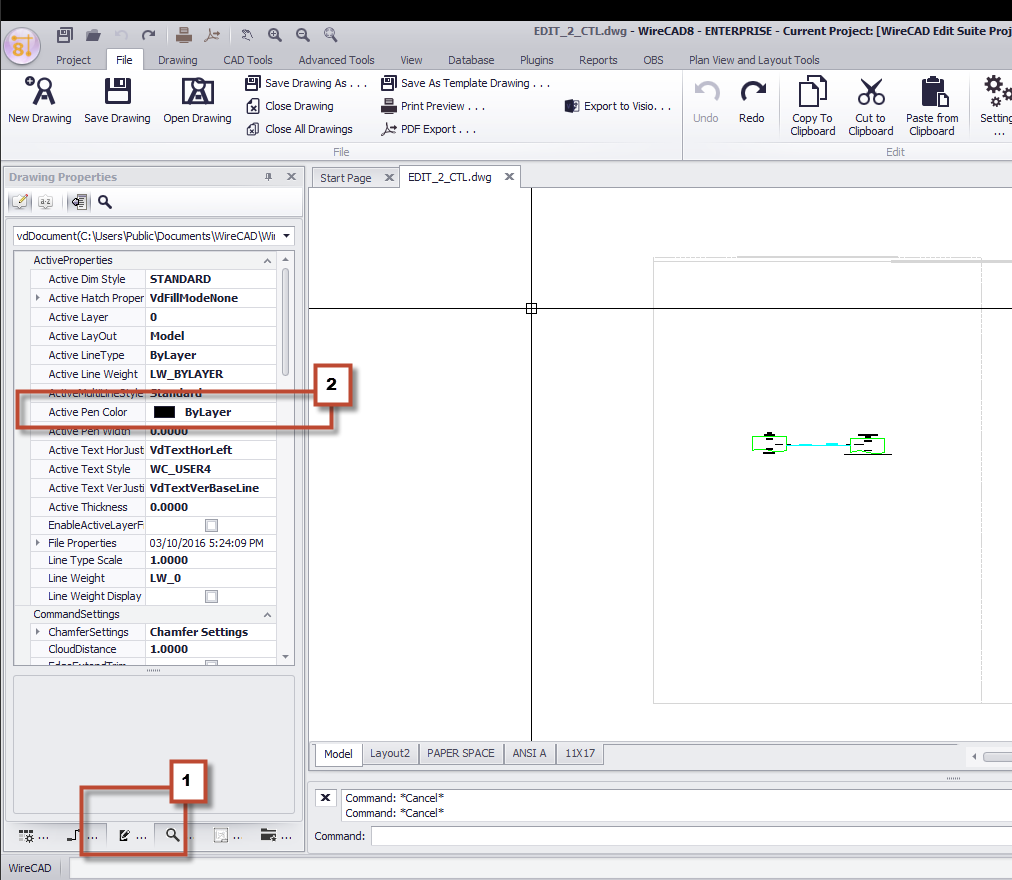

The text inherits its color on creation from the document ActivePenColor setting. This is normally set to ByLayer but it appears that yours is set to something grey.
See the attached screen capture.
See the attached screen capture.
11-March-2016 (02:27 AM)

Support
