Project Explorer > Project Databases > Blind Patches
Commandline: ShowBlindPatchTool
This is the Blind Patch tool that allows you to document your patches without knowing the whole circuit. Once the patches (jumpers) are documented you can use the Discover tool to find what is patched to what. If you find a discovered circuit to be complete you can use the Make Circuit command to create a real circuit and remove the Blind Patches from this list.

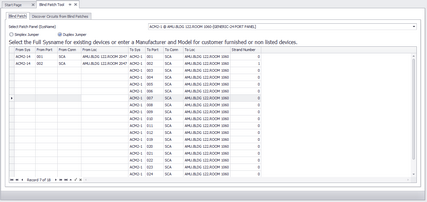

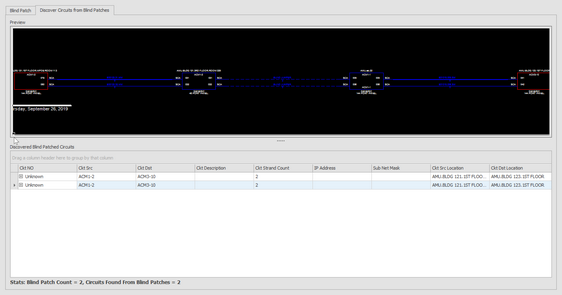

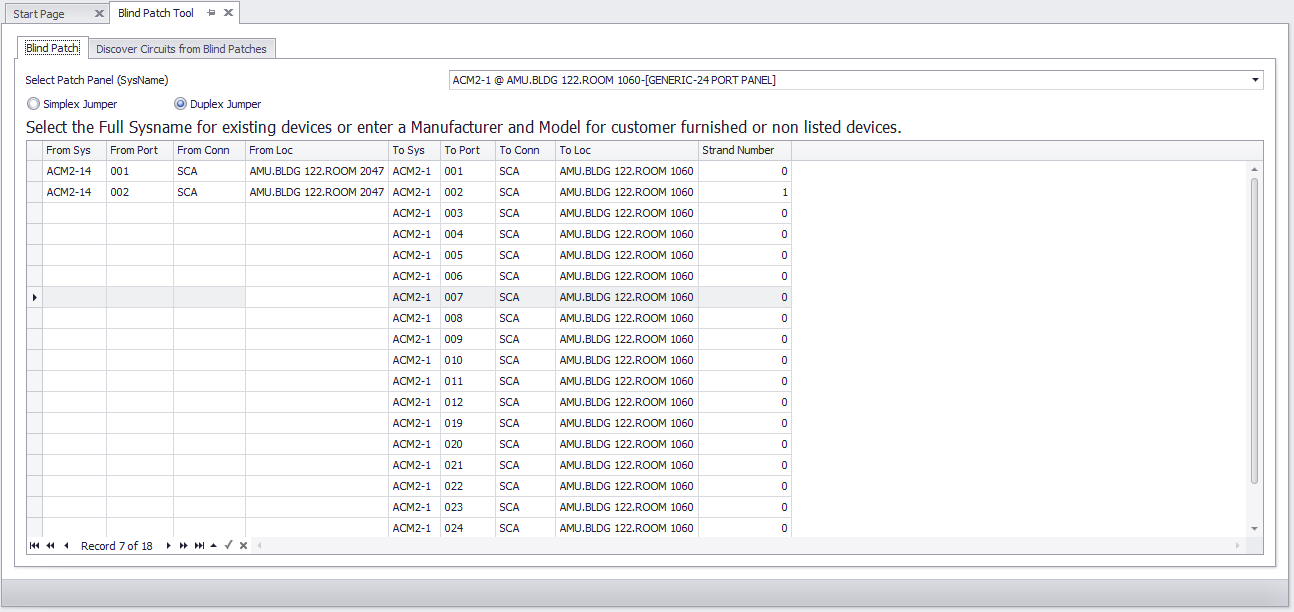

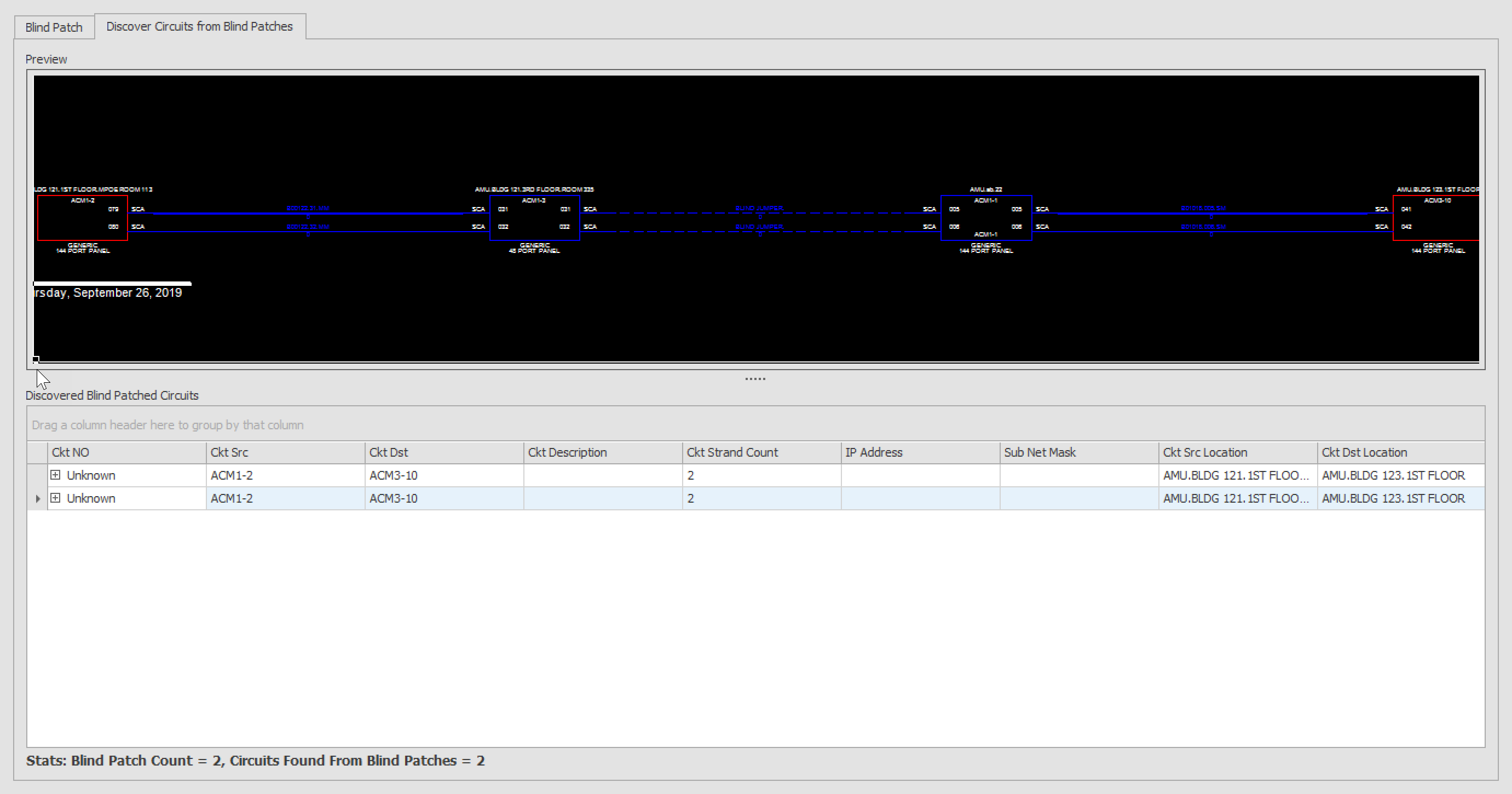

The form is tabbed. The [Blind Patch] tab (shown above) provides a data entry grid where you can add/edit/delete Blind Patches. The second tab (shown below) is used to Discover/Preview/Make Circuit(s) from your Blind Patches.
Prerequisites
At least two Backbones
Related Topics:
How To: Discover Circuits from Blind Patches
How To: Make a Real Circuit from Blind Patches
Form Options:
Menus
New: Create a new From SysName for the selected record based on the Simplex/Duplex option and the selected ToSys.
Save: Commit the changes to the database.
Delete: Delete the selected record(s). This function will delete single records for Simplex patches and two records for Duplex patches.
Discover Circuits: Search the blind patches and find all possible connections to make a circuit.
Preview Selected: When checked will cause a preview to be generated whenever the discovered circuit grid record is changed.
Make Circuit: Creates a real circuit from the data of the selected record.
Blind Patch tab
Select Patch Panel (SysName): Select the patch panel that you will jumper to.
Simplex/Duplex Jumper: Select whether the jumper needs one record or two.
Data Grid: Use this grid to select/add/edit/delete Blind Patches
Discover Circuits from Blind Patches tab
Preview: Shows the circuit preview of the selected circuit.
Discovered Blind Patch Circuits Grid: Shows the found circuits.
Status: Shows the counts of Blind Patches and found circuits.
