The following procedure describes discovering circuits from Blind Patches.



Prerequisites:

More than one Blind Patch.



Procedure:

1.Open the Blind Patches tool: Click Project Explorer>Project Databases>Blind Patches.

2.Switch to the Discover Circuits from Blind Patches tab.

3.Click [Discover Circuits].

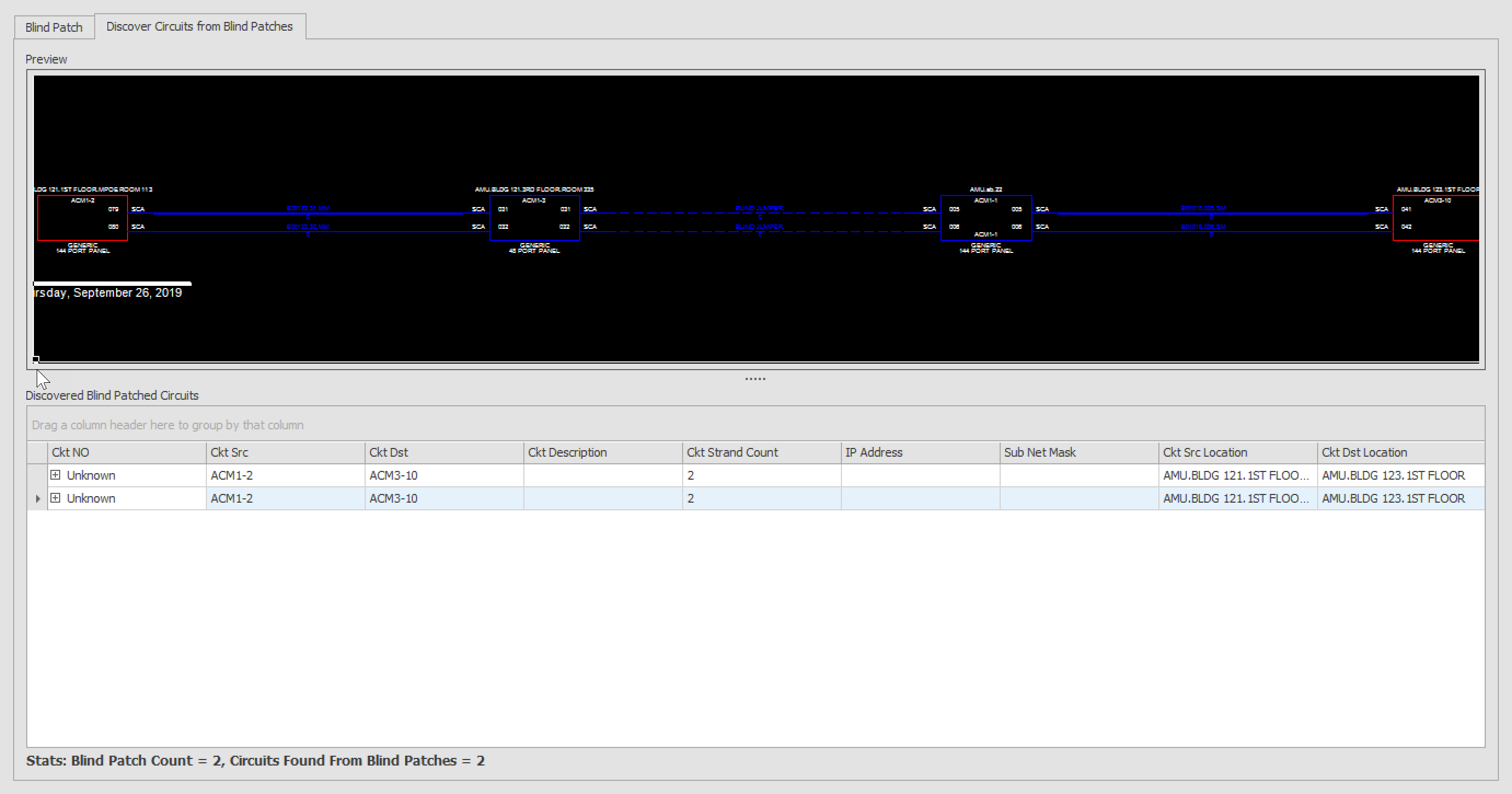

4.The grid will be populated.

5.Select a row and the found circuit will be presented in the Preview pane (if the [Preview Selected] check item is checked).
