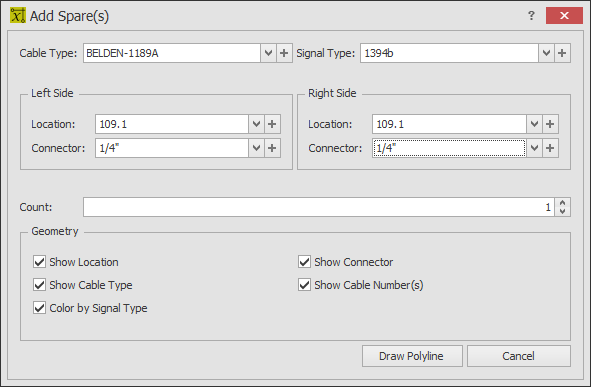

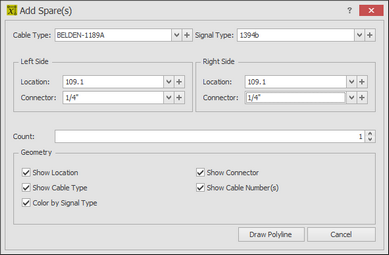

Advanced Tools > Add Spare Cable(s)

Commandline: AddSpareCables



Explanation

Place geometry in the drawing and cable(s) in the Cables database that represent spare cables.

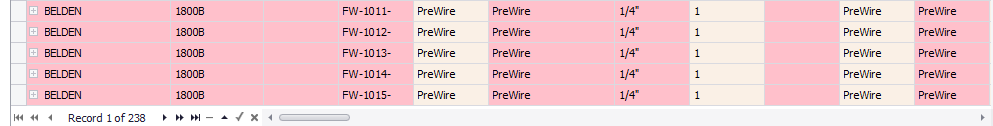

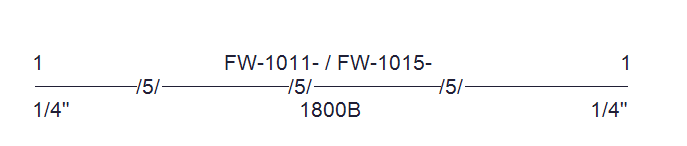

The following images represent the above settings in both drawing and the Cables database.





Prerequisites

At least one drawing



Related Topics:

How To: Add a Spare Cable
