<< Click to Display Table of Contents >> Navigation:  Reference > Dialogs > Drawing Dialogs > Advanced Tools Dialogs > Equipment Library > Incoming Signal Types Map





---

Database > Equipment Library [Download From Community]

Commandline: le

Several Others



Related Topics:

None



Explanation

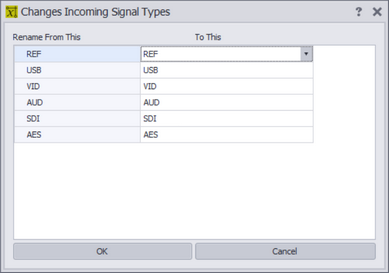

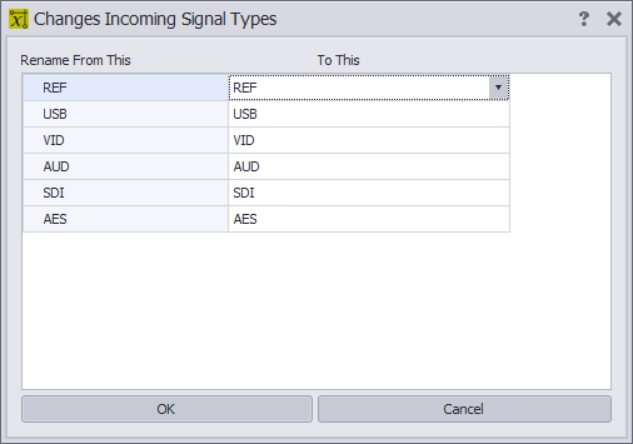

When downloading from the community server you will use this dialog to map from the Signal Types used in the incoming device definition to your Signal Types.







Dialog Options

•Rename From This - Incoming Signal Types.

•To This - Map to your Signal Types.
