The Swap Terminals feature allows you to change all terminals of a selected type to that of another.

If you get into the project and decide that something about a terminal does not please your eye you can now change it easily.

1. Select the Terminal you wish to swap.

2. [Advanced Tools], [Swap], [Swap All Terminals]

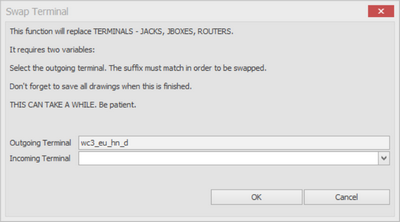

3. The swap terminals dialogue will open and you can now select the terminal that satisfies your drawing.





4. [OK]
