1.Open a drawing with a WireCAD created functional block.

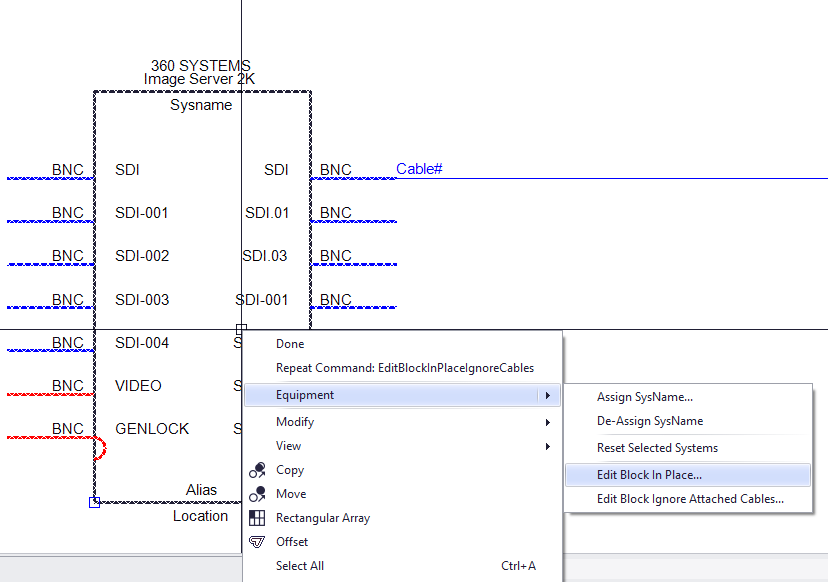

2.Select the block. It must be the only thing in the selection.

3.Right-click and select Equipment>Edit Block in Place.

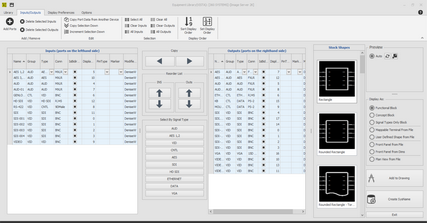

4.The block is loaded into the Equipment Library for edit.







                 Edit Initiated

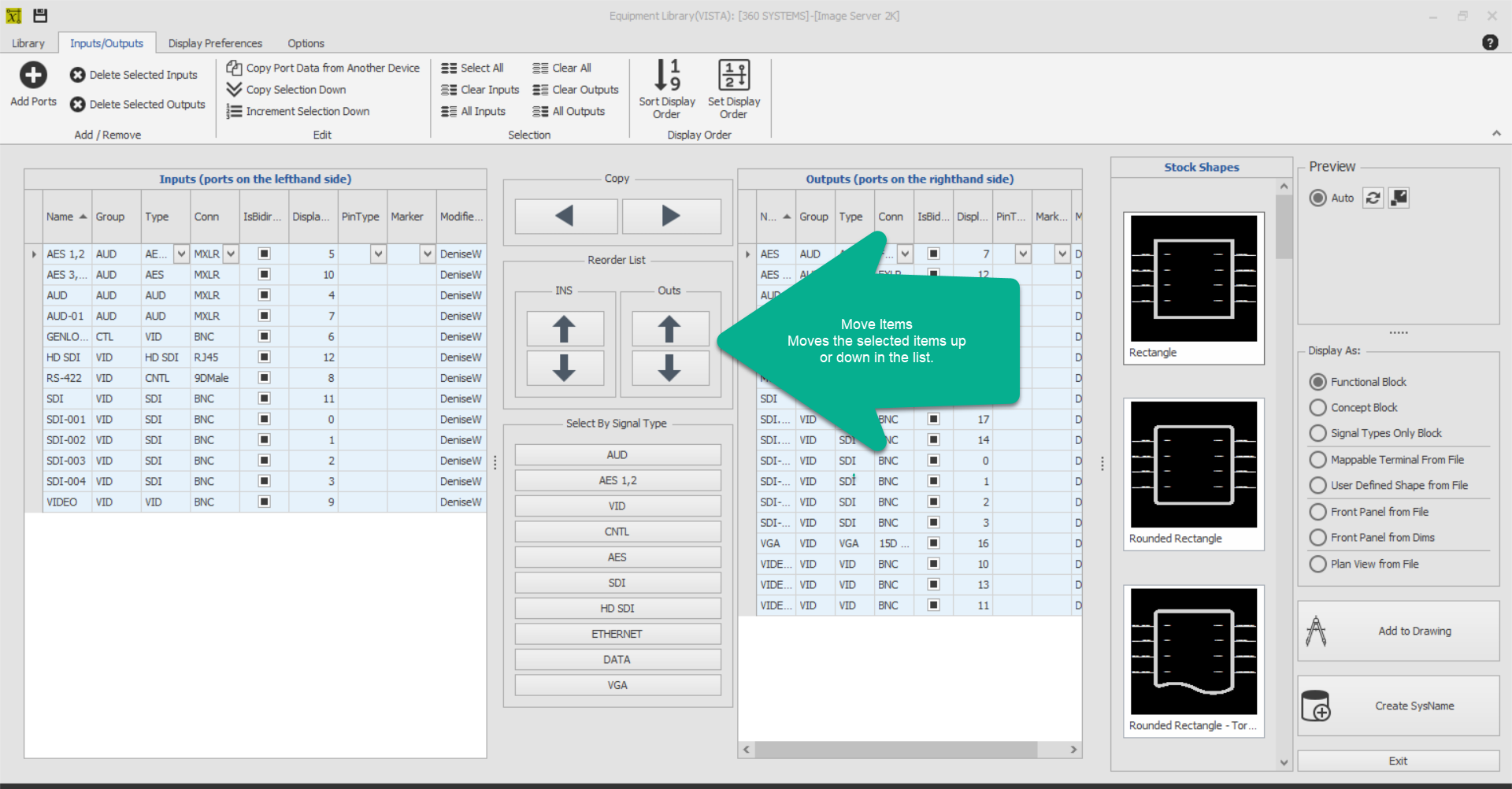

5.Make changes. Here will move the top SDI port to the bottom.

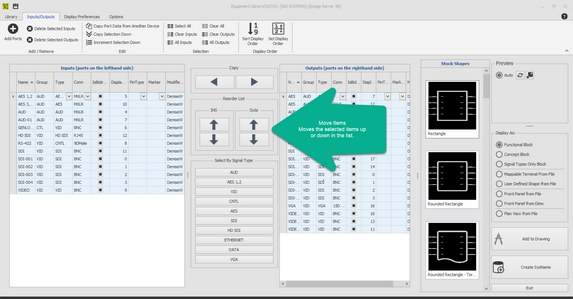

                 List Reordered



6.Click [Update Insert in Drawing].

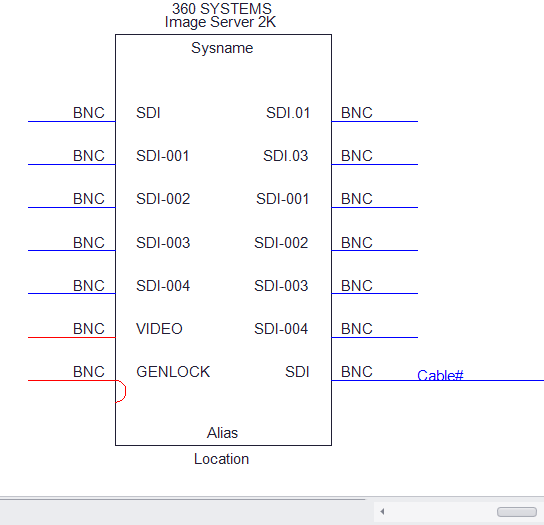

7.Done.
