The Title Block Manager will allow you to add a Title Block by adding variables to your available attributes.



1. Open the Title Block Manager. [Project] > [Title Block Manager]

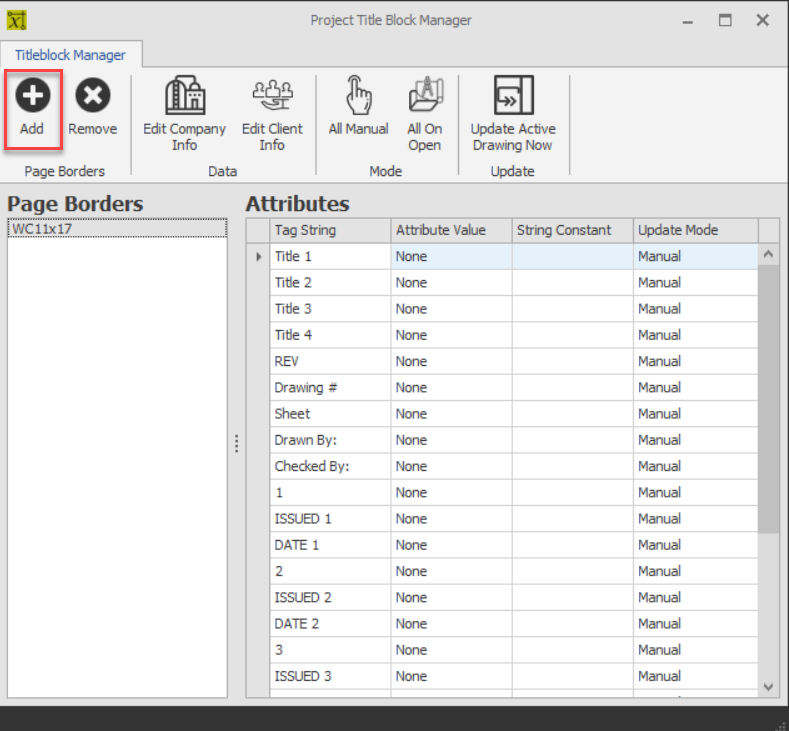

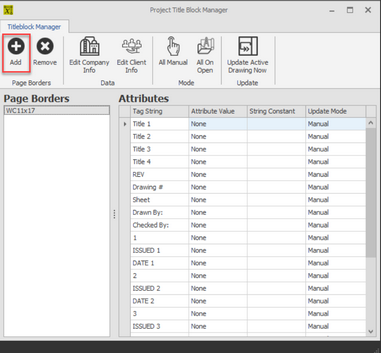

 If you have not already selected the attributes that you would like to show, simply select [Add]

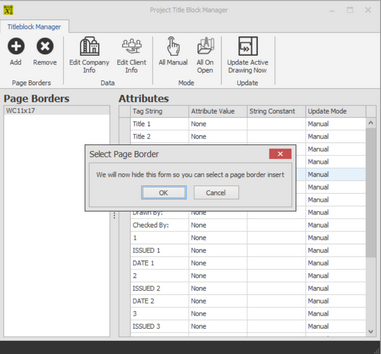

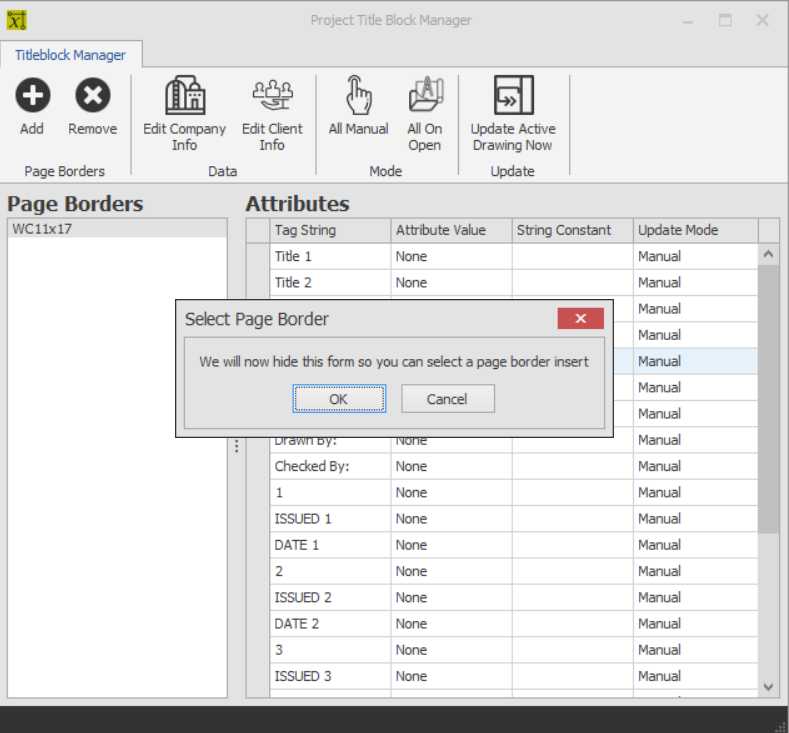

 WireCAD will prompt you that it is going to hide the Title Block Manager Dialogue so that you can select a page border insert to work with. Click [OK]















2. Select the Title Block that you would like to manage. The Title Block Manager will re-appear and you will now be able to edit your Attribute Values.

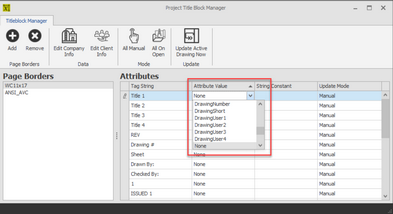

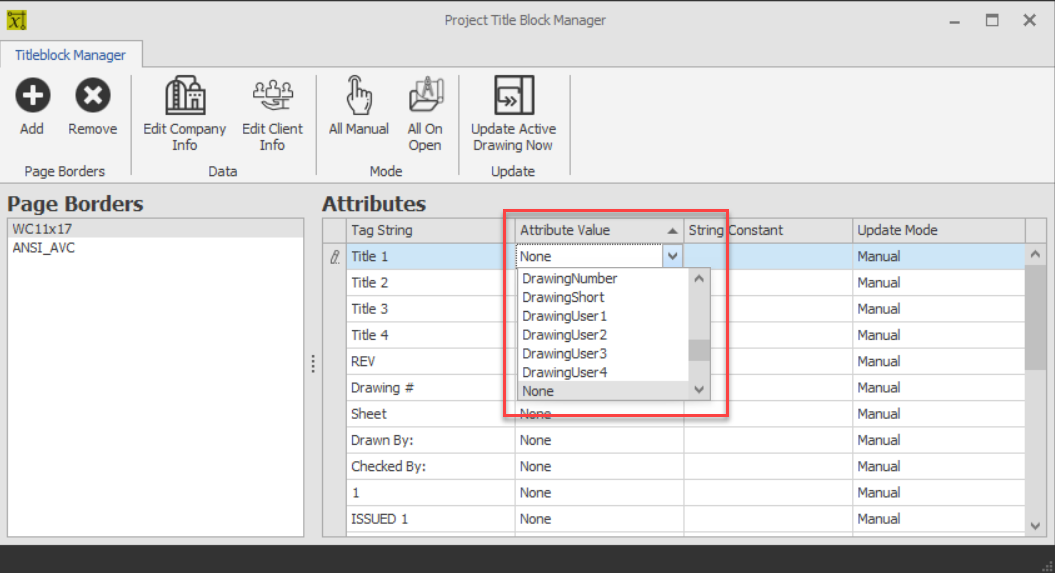

3. Edit your Attribute Values to fit your project needs.







4. Once you have edited your Attribute Values, you can can save your changes in one of two ways.

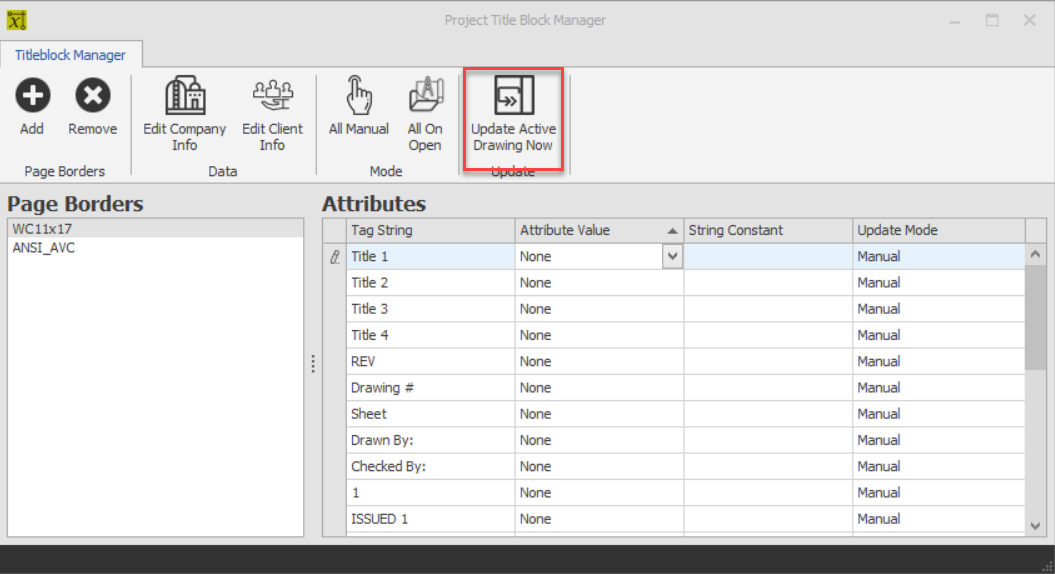

 The first way you can save your changes is by selecting [Update Active Drawing Now].

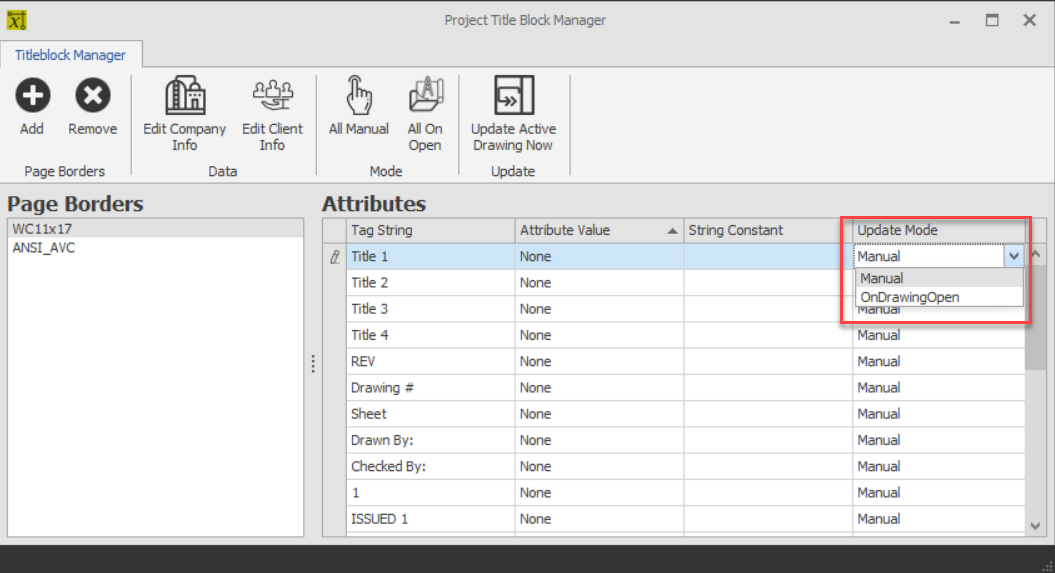

 You can also set the update settings for each attribute.











5. You are finished.
