How To: Add Equipment to Drawings

 Previous pageReturn to chapter overviewNext page

1.Create and open a drawing.

2.Find and select the equipment definition from the Equipment Library.



dlg_equipment_library_find_zoom25



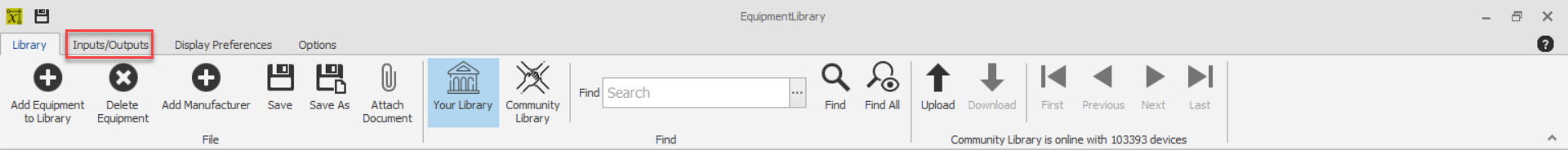

3.Select the IO you want to display in the drawing



ribbon_el_io_highlighted_zoom27

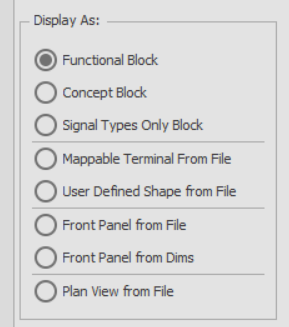

4.Select the Display mode



dlg_el_io_display_as_zoom63

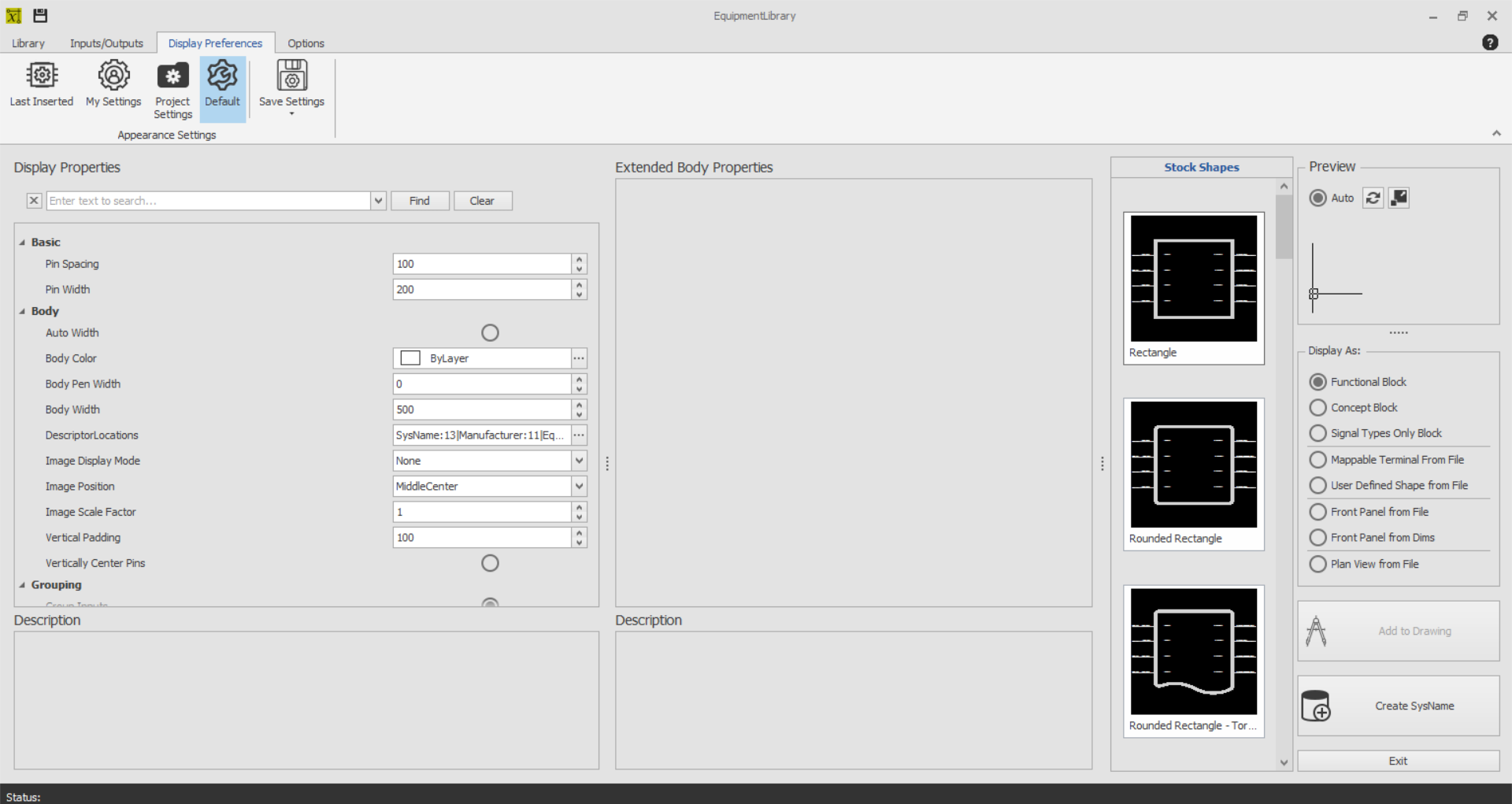

5.Select the Display Preferences. Everything is parametric. There are settings for Body Width, Pin Spacing, Color, etc.



dlg_el_display_preferences_tab_zoom27



6.If the Auto Preview function is not set, you may wish to click the Refresh button (in the preview window).



dlg_el_display_pref_preview_refresh_highlighted_zoom64



7.Click [Add to Drawing] (requires an active drawing).

8.Place the newly created block in the drawing. You will be able to place any number of copies. Just keep left-clicking to place. When you are done right-click and click done or click the [Enter] key.
