How To: Add a Port to an Existing CAD Block

<< Click to Display Table of Contents >>

Navigation:  WireCAD PRO Manual > Advanced Topics > Using Your CAD Drawings With WireCAD >

How To: Add a Port to an Existing CAD Block

 Previous pageReturn to chapter overviewNext page

Menu: Advanced Tools>WireCADify>Add Connection Point

Default command line shortcut: none

Related Settings:

 None

Adds a connection point to the selected block.

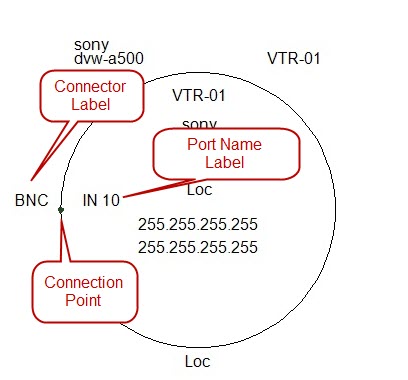

acp_03_zoom50



1.Open a drawing with a WireCAD block.

2.Click Advanced Tools>WireCADify>Add Connection Point

3.You will be prompted to select a WireCAD block.

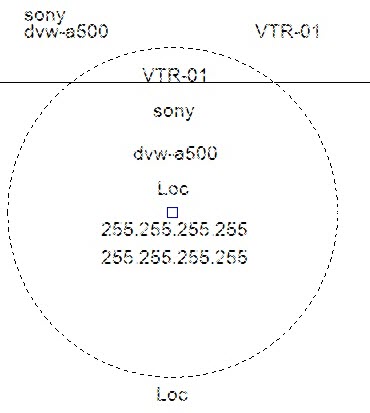

Here we have a WireCADified block

Here we have a WireCADified block

4.You will be prompted for the point at which to add the Connection Point.

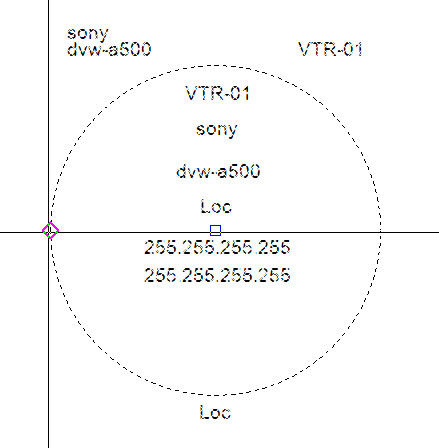

Here will will choose the arc quandrant

Here will will choose the arc quandrant

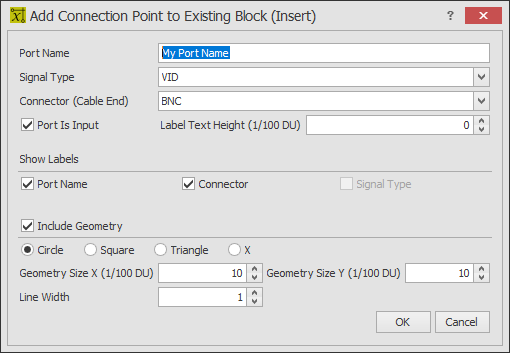

5.Enter your port info into the dialog that is presented.



  dlg_add_connection_point_zoom63

                Here we will say that the port is an input

                                called IN10.

               We will show the labels and include a small

                               circle to snap to.





6.Click [OK] to finish.

acp_03_zoom50
