Database > Backbones then Tools > New Via
Commandline: none
WireCAD ENT supports the concept of VIAS. Vias are waypoints or appearances of Backbones as they make their way from starting point to ending point. VIAS can be used to list all of the pullboxes or manholes that a backbone appears in. They can also be used to indicate splice points.

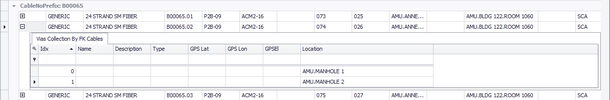

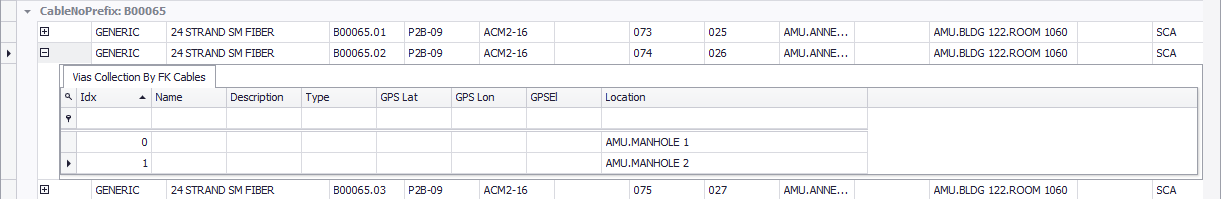

VIAS are an ordered list that is attached to the Backbone. The Idx field determines list order.
VIAS can be shown in the the following visualizations:

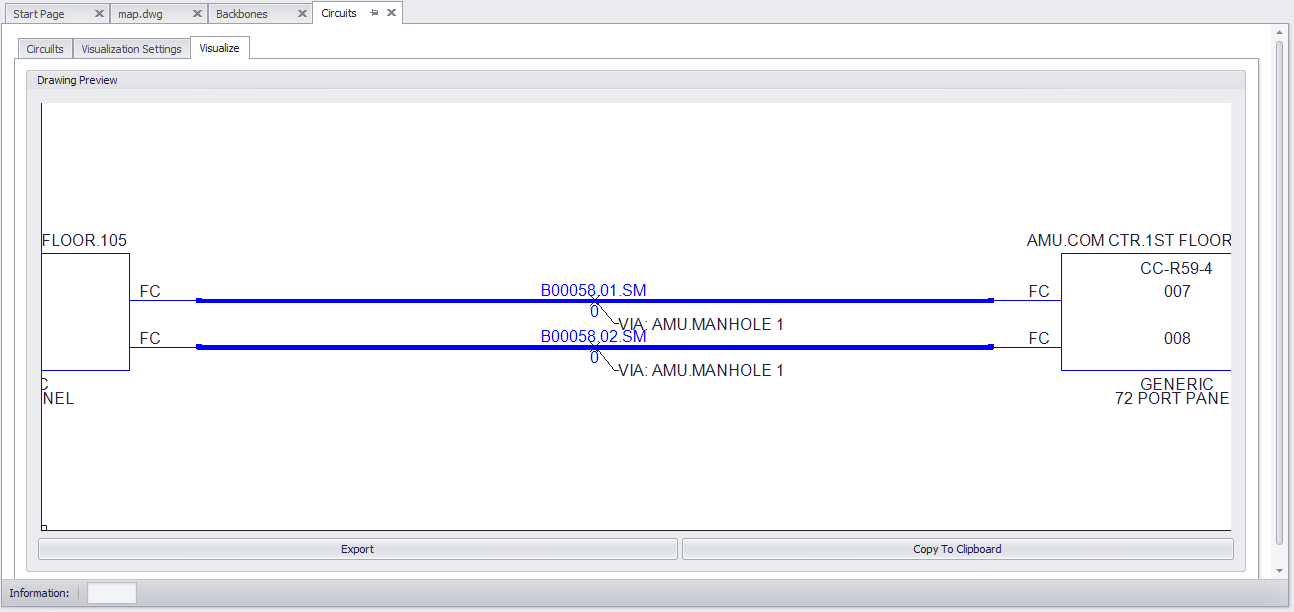

VIAS shown in the Circuits visualizer

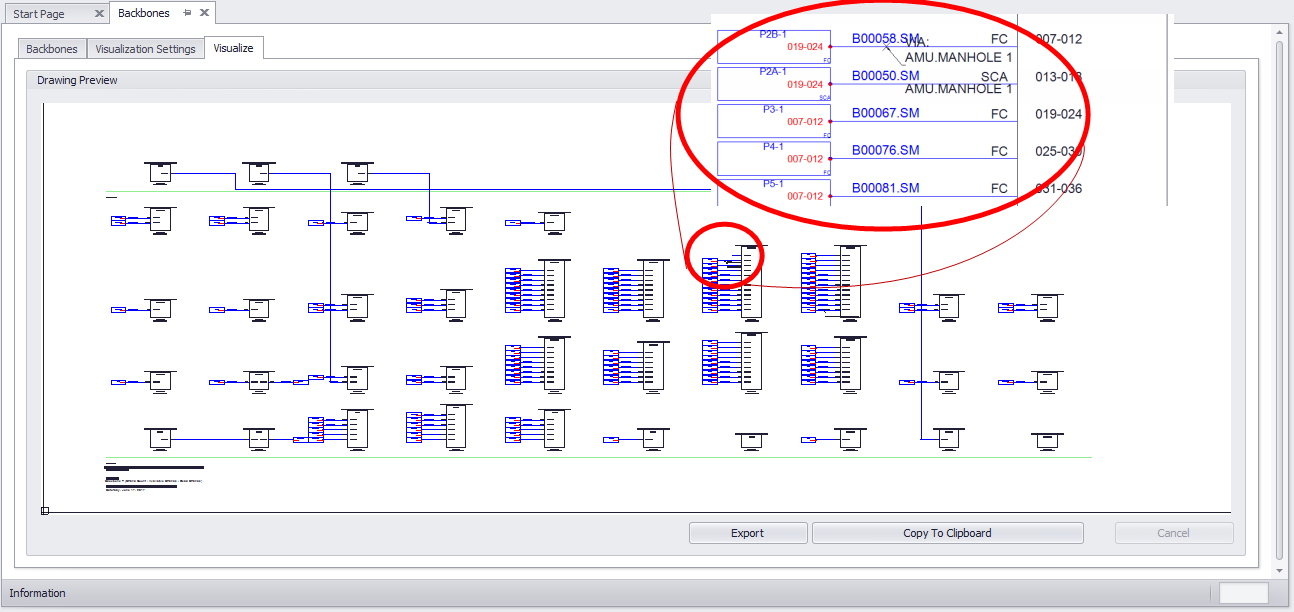

VIAS shown in the Riser visualization

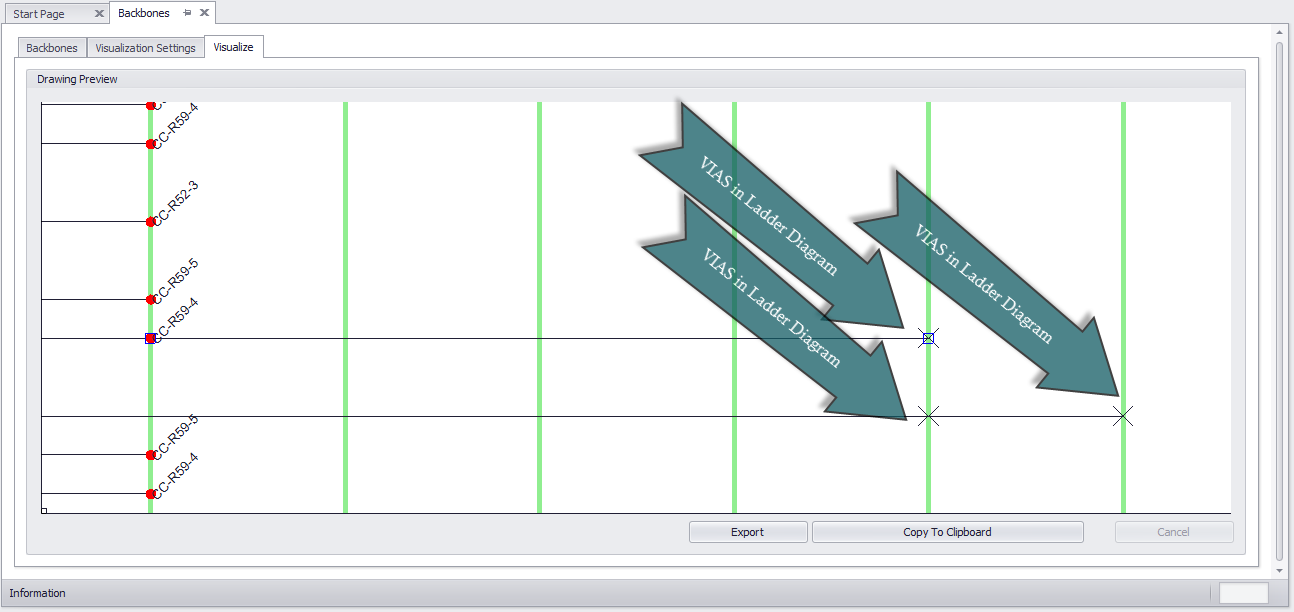

VIAS shown in Ladder Visualization

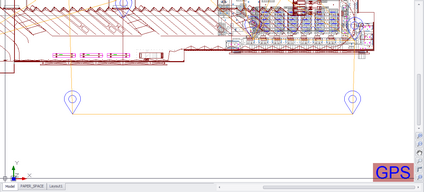

Backbone from panel to panel Via Manhole 1 and Manhole 2
Prerequisites
1.At least one Backbone in the database.
Related Topics:
Backbones Visualization Settings
Circuits Visualization Settings
Backbone Display in Calibrated Drawing

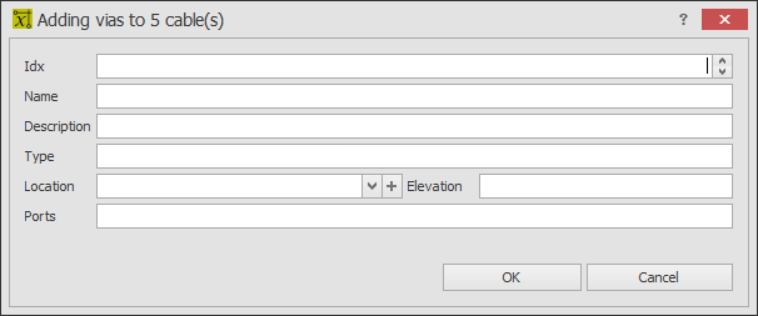

All of the following are optional except the Idx field.
•Idx - the position in the list of VIAS.
•Name - Optional name of the VIA.
•Description - Optional description of the VIA.
•Type - Optional type of the VIA.
•Location - Optional location of the VIA.
•Elevation - Optional elevation of the VIA.
•Ports - Optional ports of the VIA.
