Systems
|
Navigation: WireCAD Databases > Project Specific Databases > Systems > Systems |
|
|
|

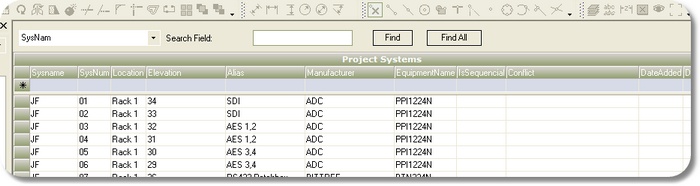

Project Systems Database

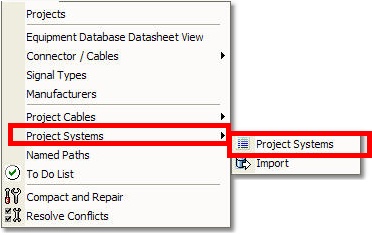

Menu: Databases>Project Systems>Project Systems
Default keyboard shortcut: LPS
Function:
Displays the Systems database.
|
You can edit the Location, Elevation and Alias fields and WireCAD will update the drawings in the projects.

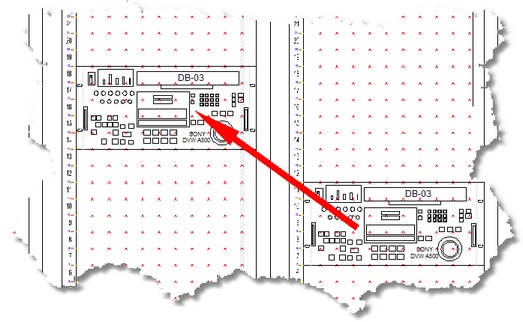

WireCAD will also attempt to move any Rack layouts to the new location.
|
Project Systems Database Field Descriptions
Field Name |
Description |
Alias |
The friendly or functional name for this device |
Conflict |
Conflict resolution mode. Conflicts arise when two devices that are marked IsSequential are connected together. At this point we must discard one of the numbers.
|
Current Project Revision |
Inherited from the Global Projects database. |
Date Added |
The date created. |
Date Modified |
Last Modified. |
Elevation |
The Elevation element of the location data. |
Equipment Name |
Equipment Name |
Is Sequential |
Reserve a sequential number for each input and output regardless of connection state. |
Location |
The Location element of the location data. The Location and Elevation fields will be concatenated together using the System Location Delimiter to create the Location data. ex Room 101.Wall, or 101-11.12 |
Manufacturer |
Manufacturer name. |
SysName |
The name element of the sysname. |
SysNum |
The number element of the sysname. |
User1 |
For you. |
User2 |
For you. |
User3 |
For you. |
User4 |
For you. |
|
This grid can be exported to MS Excel. Projects>Import/Export>Export to Excel: |
